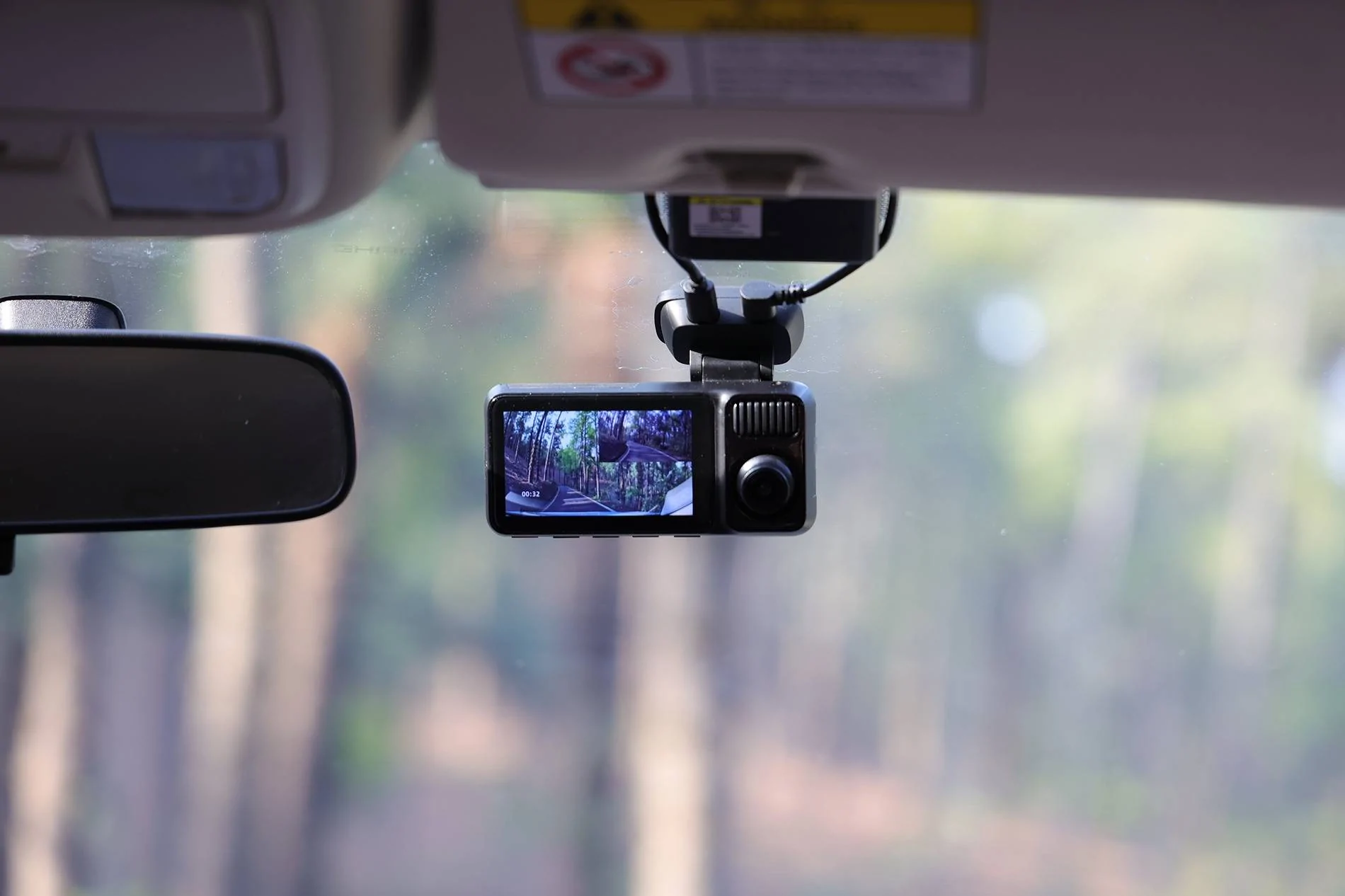

Redtiger F17 Elite 3-Channel Dash Cam

Some of you may have already known about our recently released dash cam model, F17 Elite. This thread provides some specs on the product in case some are interested in it and want to learn more about it.

Full-Color Night Interior Recording: Realistically Reproduce Interior Scenes
Achieves color restoration of interior scenes through intelligent image algorithms, delivering high-quality video footage.
Provides full-color recording, ensuring clear footage even in dimly lit car interiors, so what you see is what you get.

Triple-Channel Recording (Front Cam + Cabin Cam + Rear Cam):
  • 4K/30fps + 1080P/25fps + 2.5K/30fps
  • 4K/30fps + 1080P/25fps + 1080P/30fps
Dual-Channel Recording (Front Cam + Rear Cam):
  • 4K/30fps + 2.5K/30fps
  • 4K/30fps + 1080P/30fps
  • 4K/30fps + 1080P/25fps
Single-Channel Recording (Front Cam):
  • 4K/30fps

Camera Specifications:
  • Front Cam: IMX678 + TRC1101D26 (F1.8, HFOV 112°, 4G3P)
  • Cabin Cam: IMX307 + TRCF2201S6 (F2.0, HFOV 107°, 2G3P)
  • Rear Cam: IMX675 (ETH, Interior Mounted)

File Formats:
  • Video: MP4
  • Image: JPG

Wi-Fi/APP:
  • 5.8G Wi-Fi 6 Redtiger

Features:
  • Loop Recording: 1/3/5 minutes
  • Fatigue Driving Alert: Off / 1 / 2 / 3 / 4 hours
  • Parking Monitoring:
    • Off
    • G-Sensor Triggered Recording
    • Time-Lapse Recording (12 hours / 24 hours / 48 hours)
  • G-Sensor Sensitivity: Off / Low / Medium / High

Other Specifications:
  • GPS: Dual-Mode (Beidou and GPS), Built-In
  • Operating Temperature: -20°C to +70°C
  • Button Battery: TFD621 3.3V
  • Battery/Capacitor: Super Capacitor 5.5V/3.5F
  • Maximum Storage Support: Up to 512GB
